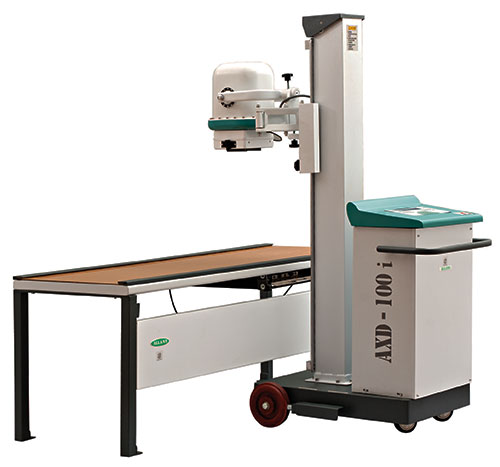

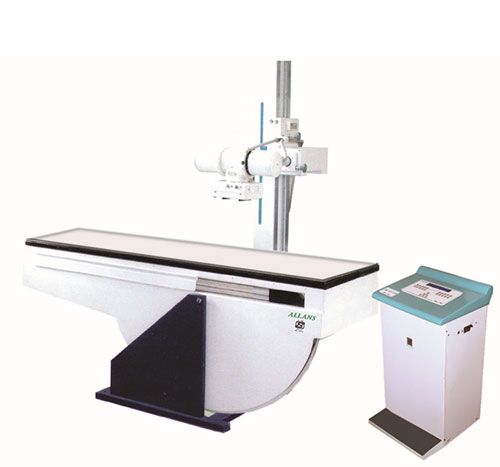

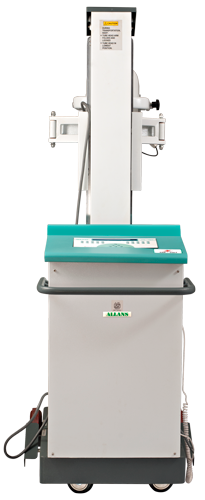

Allans - AXD 100i
The company is managed by the team of expert engineers having vast experience in the field of bio- medical engineering. The company manufactured quality xray equipments from dental to all kind of x-ray ma- chines and C-Arm in line frequency and high frequency.
Functions Features
- Semi Feather Touch Control Panel.
- Electronic Solid State Timer With 24 Steps.
- Independent KVp, mA & mAs Display.
- Line Voltage /mA Meter For Voltage Adjustment.
- X-Ray Exposure On Audible Tone.
- Main On/Off Feather Touch Membrane Botton.
- Overload Function To Protect The Tube.
- Counter Balanced Mechanism & 4 Wheel Design For Max. Mobility & Maneuverability.
- Horizontal And Vertical Travel Of Arms For Better Positioning.
- Collimator Operation From Control Panel.
| GENERATOR RATING | |
|---|---|
| Radiography | 100mA at Kvp |
| Fluoroscopy | 5mA at 100 Kvp |
| TUBE VOLTAGE | |
|---|---|
| Radiography | 40Kvp TO 100 Kvp |
| Minor kvp | 2Kvp TO 10Kvp |
| Minor kvp | (2Kvp STEPS) |
| For Microprocessor | 40Kvp TO 100 Kvp (2Kvp Steps) |
| TUBE CURRENT | |
|---|---|
| Radiography | 40mA, 60mA, 80mA, 100mA |
| For Microprocessor | 25mA, 50mA, 100mA |
| SELF - CONTAINED TUBE HEAD SPECIFICATION | |
|---|---|
| Rectification | Full-Wave, Rectified |
| X-Ray Tube | Stationery Aonde, 40khu (2.8 X 2.8) Sq.,mm.Focal spot |
| TIMER | |
|---|---|
| Radiography | 0.02sec.To 05 Sec Solid State (24 Steps) |
| For Microprocessor | 0.02 Sec To 05 Sec (Step Less) |
| Power | 8 Kw |
| POWER SUPPLY | |
|---|---|
| Single Phase | 230V 50/60Hz, 10KVA 0.6 Ohms Line Resistance |
| Movements | Up/Down Fully Counter - Balance
Vertical Travel 1300mm In/Out Travel 400mm Angular Travel +80 Deg Tube Angulation Full Rotation |
|
|---|---|---|
| Over All Dimension | Length 1200mm
Width 650mm Height 1880mm |
|
